Specifications

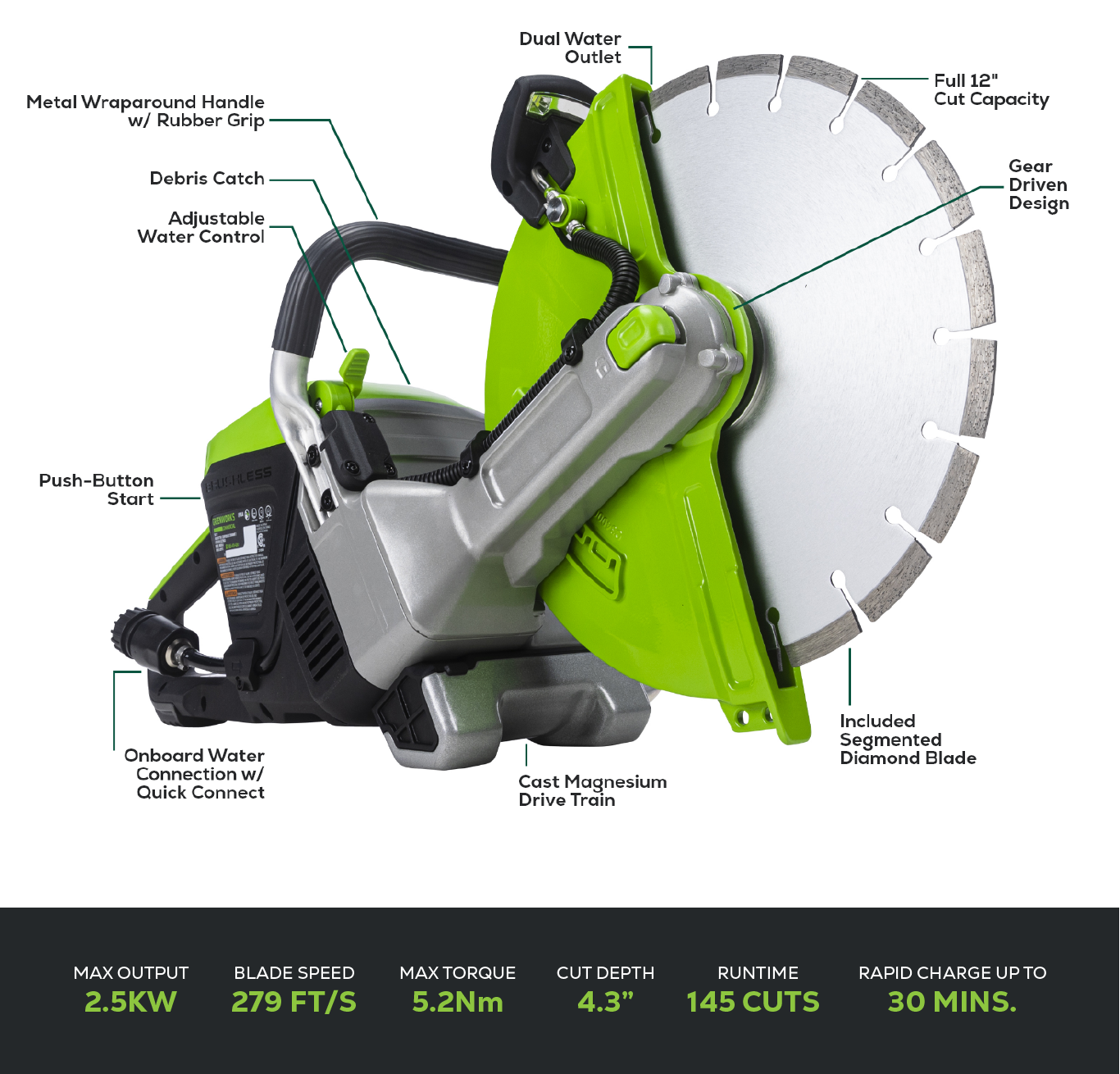

POWER CUTTER LINE UP
MODEL | 82PC12 | 82PC14 |
PEAK POWER | 2.5kW | 4.3kW |
BLADE SPEED | 279 FT/S | COMING SOON |
TORQUE | 5.2 NM | COMING SOON |
BLADE DIAMETER | 12-IN | 14-IN |
BLADE ARBOR SIZE | 1" / 20 MM | 1" / 20 MM |
CUT DEPTH | 4.3" | 5" |
TOOL WEIGHT | 14.9 LBS. | COMING SOON |
WEIGHT (OPERATING) | 19.9 LBS. | COMING SOON |
AVAILABLE BATTERY OPTIONS
Model | 82BD250 | 82BD400 | 82BD500 | 82BD800 |
Capacity (Ah/Wh) | 2.5AH/200 WH | 4.0AH/320 WH | 5.0AH/400 WH | 8.0AH/640 WH |
Weight (in Ibs.) | 3.74 LBS. | 4.57 LBS. | 6.14 LBS. | 8.6 LBS. |
Dimensions (L× W x H, in IN) | 6.63" X 4.63" X 3.63"' | 6.63" X 4.63" X 3.63" | 8.5" X 4.63" X 3.63" | 9.5" X 4.63" X 3.63" |
Connectivity | BLUETOOTH | BLUETOOTH | BLUETOOTH | BLUETOOTH |
Display Indicator | LED DISPLAY | LED DISPLAY | LED DISPLAY | LED DISPLAY |
Rated Power | 2500W 35A | 3200W 454 | 4000W 55A | 4600W 65A |
Max Power | 3000W | 4500W | 5000W | 6000W |
Cell Type | LITHIUM-ION | LITHIUM-ION | LITHIUM-ION | LITHIUM-ION |
82DPC8A Charge Time | 30 MINUTES | 30 MINUTES | 40 MINUTES | 60 MINUTES |
82CH62K Charge Time | 30 MINUTES | 40 MINUTES | 50 MINUTES | 80 MINUTES |
1.5kW DP Charger | 30 MINUTES | 30 MINUTES | 38 MINUTES | 60 MINUTES |
AVAILABLE CHARGER OPTIONS
Model | 82DPC8A | 82CH62K |
Input Voltage | 120V | 120V |
Input Current | 10A | 154 |
Output Current | 8A | 6A PER (2) SLOTS |
Output Power | 650W | 1500W |
Weight (Ibs) | 4.72 LBS. | 38.58 LBS. |
Dimensions (Lx W x H) | 9.3" X 7.6" X 6.8" | 28.1" X 15.2" X 17" |
Active Cooling | YES | YES |
Features | DUAL PORT | 6 PORTS |
Charge Time (2.5 Ah) | 30 MINUTES | 38 MINUTES |
Charge Time (4 Ah) | 30 MINUTES | 40 MINUTES |
Charge Time (5 Ah) | 40 MINUTES | 50 MINUTES |
Charge Time (6 Ah) | 45 MINUTES | 60 MINUTES |
Charge Time (8 Ah) | 80 MINUTES | 80 MINUTES |

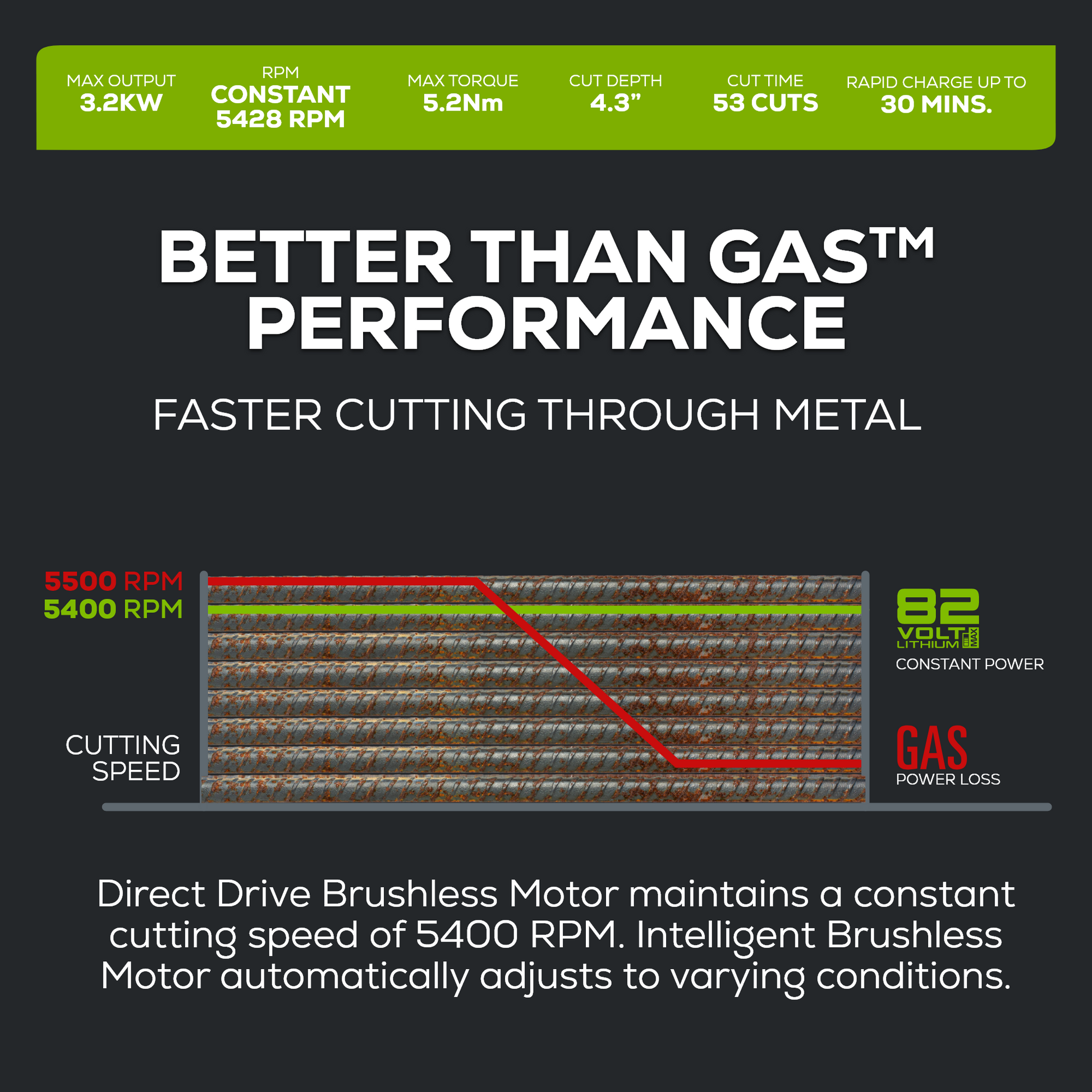

PERFORMANCE
Max HP Equivalent | 4.3 HP |
Max Power | 3.2 kW |
Max Torque. | 5.2 Nm |
Equivalent | 66cc |
RPM | 5,248 |
Blade Speed | 279 Ft/s |
Vibration (front handle) | 4.0 m/s2 |
Sound @ Ear | 93 dB |
Sound @ 50 Ft. | 72.9 dB |
EQUIPMENT
Motor Type | Brushless |
Blade Diameter | 12" |
Blade Arbor Size | 1" / 20mm |
Electronic ON/OFF | Yes |
Integrated LED | Yes |
Speed Settings | Variable |
Water Connection | Yes |
Adiustable Flow | Yes |
Adiustable Guard | Yes |
Guard Material | Magnesium |
Aux Handle Material | Metal |
Over-mold | Yes |
IP Rating | IPX4 |
BATTERY
Voltage | 82V |
AH | 4.0AH |
Capacity (Wh) | 320Wh |
Weight (Ibs) | 4.5 lbs |
CHARGER
Charge Time | 30 Minutes |
Charge (W) | 650W |
Charging Ports | Dual |
Weight (Ibs) | 4.72 Ibs |
DIMENSIONS
Length (in.) (w/ Blade) | 33 8" |
Width (in.) | 9.5" |
Height (in.) | 15.16" |
Tool Weight | 12.46 Ibs. |
Operating Weight | 17.03 Ibs. |
